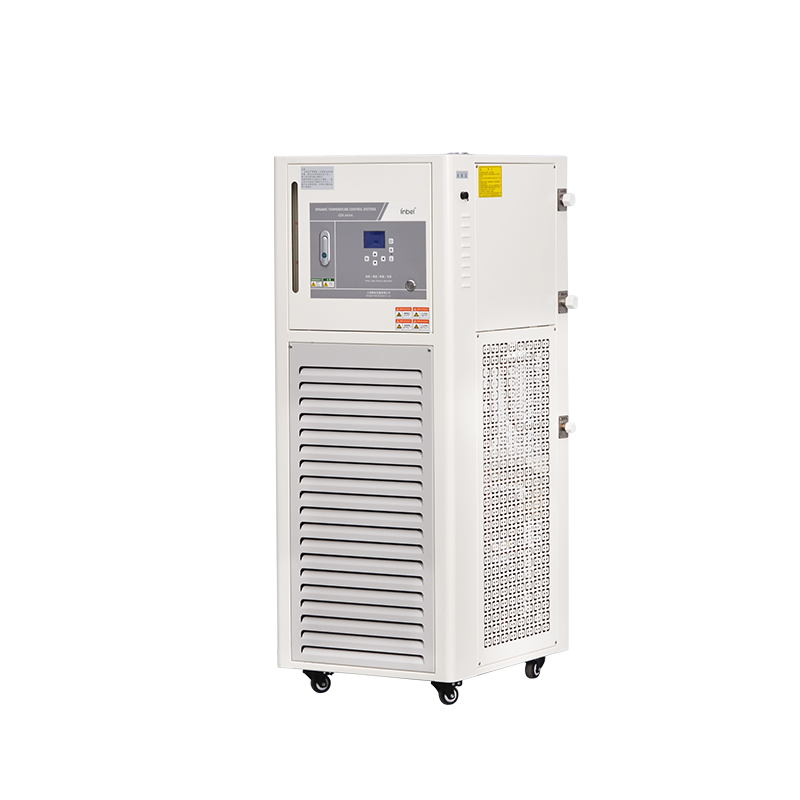

The heating circulator can realize dynamic temperature control from - 30 ℃ to 200 ℃. It also has the function of heating and refrigeration. The product is efficient and quick, and the liquid filling is simple. The whole liquid circulation is a closed system, without oil mist and water absorption, which ensures the safety of the experiment and the service life of the heat conducting medium. International brand compressor and circulating pump are adopted, with stable performance and reliable quality; The product has self diagnosis function, refrigerator overload protection, high pressure switch, overload relay, thermal protection device and other security functions.
Model | GDX-302A | GDX-303A | GDX-306A | GDX-309A | GDX-312A | GDX-318A | ||
Technical data | Temperature range | -30～200℃；±0.5℃ | ||||||
Ambient temperature（℃） | ≤30℃ | |||||||
Ambient humidity | 60% | |||||||
Voltage（V） | 220 | 380（Optional 3P 220V/3P 480V） | ||||||
Phase（P） | 1 | 3 | ||||||
Frequency（Hz） | 50/60 | |||||||
Power（Kw） | 2.8 | 4.5 | 9.5 | 15 | 18 | 26 | ||
Heating capacity（Kw） | 2 | 3 | 6 | 9 | 12 | 18 | ||
Cooling capacity（w） | RT | 2200 | 3400 | 7500 | 11500 | 15750 | 31428 | |
0℃ | 1600 | 2100 | 5500 | 8600 | 11000 | 20214 | ||
-30℃ | 700 | 1800 | 2100 | 3200 | 4000 | 5900 | ||
Temperature sensor | PT100 | |||||||
Protection | Overvoltage, time delay, overcurrent, overheating, leakage, protector | |||||||
Compressor | Type | Closed | ||||||
Brand | Panasonic | Tecumseh/Danfoss/Copeland | ||||||
Power（Kw） | 0.73 | 1.25 | 2.25 | 3.75 | 4.5 | 6 | ||
HP | 1 | 1½ | 3 | 5 | 6 | 8 | ||
Quantity | 1 | 1 | 1 | 1 | 1 | 1 | ||
Refrigerant | R404A | |||||||
Condenser | Type | Air cooling/water cooling | ||||||
Fan type | External rotor axial flow fan | |||||||
Quantity | 1 | 2 | ||||||
Evaporator | Type | Plate heat exchanger | ||||||
Tank volume（L） | 7 | 7 | 10 | 17 | 35 | 50 | ||
External circulation adapter size | G1/2" external interface | G3/4" external interface | G1" external interface | |||||
Circulating pump | Type | Shield pump | Vortex pump | |||||
Brand | Shanghai Jingyi | Aulank | ||||||
Power（w） | 100 | 250 | 370 | 370 | 750 | |||
Current（A） | 1 | 1 | 2.1 | 3.5 | 3.5 | 3.5 | ||
Rated lift（m） | 20 | 20 | 15 | 22 | 28 | 22 | ||
Rated flow（L/min） | 10 | 20 | 30 | 42 | 56 | 100 | ||
Appearance dimension | Weight（Kg） | 60 | 90 | 130 | 170 | 220 | 340 | |
Packing weight（Kg） | 80 | 115 | 150 | 220 | 290 | 430 | ||
Chiller size | Length（mm） | 540 | 620 | 710 | 770 | 970 | 1200 | |
Width（mm） | 420 | 540 | 580 | 670 | 800 | 970 | ||
Height（mm） | 800 | 920 | 1090 | 1180 | 1350 | 1580 | ||
Packing size | Length（mm） | 610 | 680 | 770 | 840 | 1040 | 1280 | |
Width（mm） | 510 | 620 | 660 | 760 | 890 | 1050 | ||
Height（mm） | 870 | 1100 | 1220 | 1340 | 1520 | 1760 | ||
*PLC | Control system | Siemens S7-200 smart PLC | ||||||
Programming | 5 programs can be written, each with up to 40 steps | |||||||
Control model | Material temperature and equipment outlet temperature can be switched automatically | |||||||
Protocol | Modbus RTU protocol RS485 interface (optional RS232 Ethernet) | |||||||
Control panel | 7-inch Siemens color touch screen (optional 10 inch) | |||||||
Data export | Support USB flash disk data export, and export temperature data in TXT format | |||||||
Packing list | 2 sets of adapter valves, one roll of raw meal | |||||||
2 stainless steel insulated hoses | ||||||||
Operation instructions | ||||||||
All data are measured in the factory, and users will have errors in the process of use | ||||||||
*PLC for optional PLC part data, it is not applicable if there is no PLC | ||||||||
