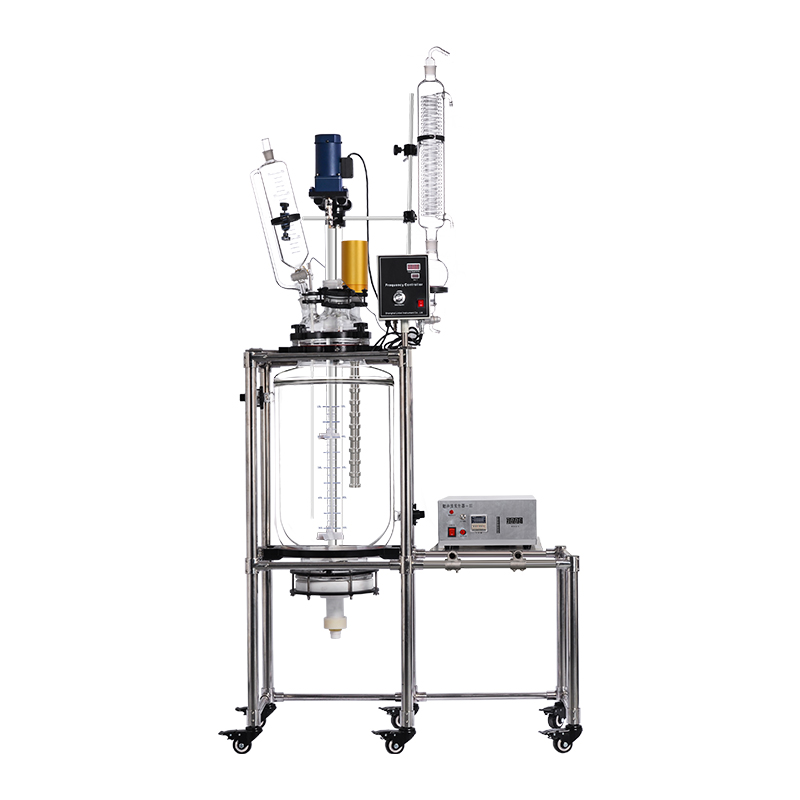

The main uses of ultrasonic reaction vessels are extraction, homogenization, stirring, emulsification, etc. They are widely used in fields such as biotechnology, chemical technology, pharmaceutical technology, food technology, environmental technology, etc.
Model | GR-20L | |
Volume(L) | 20 | |
Jacket volume(L) | 6 | |
Condensation area(m²) | 0.7 | |
Feeding tank volume(L) | 1L | |
Recovery tank volume(L) | 5 | |
Kettle cover diameter | Impeller diameter | 50# flangetype |
Temperature sensor diameter | 40# flangetype | |
Condenser connection | 50# spherical grinding | |
Liquid feed inlet | 34# standard grinding×1 | |
Feeding tank interface | 40# standard grinding | |
Solid feed inlet | 80# flangetype | |
Glass assembly | High borosilicate glass 3.3 | |
Main frame | SUS304 | |
Stirring paddle | Paddle agitator, internal stainless steel, external polytetrafluoroethylene (PTFE), titanium | |
Motor | For viscous materials, high-power motors can be used | |
Move method | Lockable casters | |
Working temperature(℃) | -120℃~300℃ | |
Maximum temperature difference(℃) | ≤60 | |
Pressure in kettle(MPa) | -0.1~0.1 | |
Jacket pressure resistance(MPa) | ≤0.1 | |
Pressure rise rate of vacuum system | ≤2kPa/h | |
Mixing motor power(W) | Common 120W/ explosion proof 180W | |
Speed regulation mode | Frequency control | |
Speed adjustment range(rpm) | 0~600 | |
Temperature sensor | Pt100 | |
Temperature display accuracy(℃) | ±0.1 | |
Temperature range | Water: RT~90℃ | |
Oil: RT~300℃ | ||
Interface size of stainless steel insulation hose | ½in external screw thread | |
Seal material | PTFE | |
Installation height of discharge valve(mm) | 450 | |
Power | 220V/110V,50/60Hz | |
Environment temperature(℃) | 5~35 | |
Relative humidity(%) | ≤65 | |
Size(mm) | 660W*620D*2400H | |
Weight(kg) | 82 | |
Ultrasonic generator | |||||
Frequency | Power | Tool head material | Tool head length | Tool head diameter | Operating Voltage |
19.56KHz | 3000W | Titanium alloy | 496(mm) | Φ40(mm) | 220V/50Hz |
